Pneumatic Conveying Calculator: How to Estimate Blower CFM and Pressure Requirements
Moving dry bulk material through a pneumatic conveying system requires more than selecting a blower with enough airflow. Pipe diameter, conveying distance, elbows, vertical lift, material properties, and conveying velocity all affect blower airflow (ICFM) and pressure requirements. A pneumatic conveying calculator estimates those values during preliminary system planning.

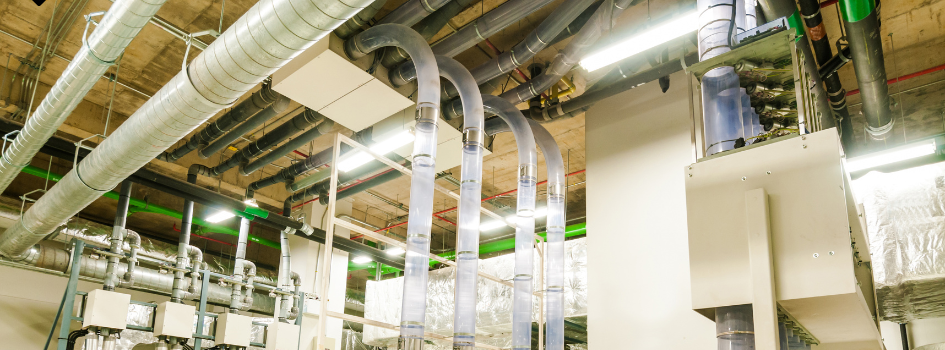

What is a Pneumatic Conveying Calculator?
A pneumatic conveying calculator estimates the blower airflow, typically expressed as inlet cubic feet per minute (ICFM), and pressure needed to move bulk material through a conveying line. It combines information such as material type, conveying rate, pipe diameter, piping length, and elevation changes to estimate blower requirements.
The calculation provides a useful starting point during preliminary pneumatic conveying system design. Engineers use it to compare layouts, estimate blower sizing, and narrow equipment selection before moving into detailed system design.
Inputs used in a Pneumatic Conveying Calculation
Several variables affect the amount of air required to move material through a conveying line.
Typical inputs:
- Material being conveyed
- Material feed rate (lb/min)
- Bulk density
- Pipe diameter
- Horizontal conveying distance
- Vertical lift
- Number of elbows
- Air temperature
- Elevation above sea level
These values are used to estimate effective conveying distance, required air velocity, blower airflow (ICFM), and system pressure.
Changing even one variable can noticeably affect the results. Increasing pipe length or adding additional elbows increases friction losses and requires the blower to overcome greater system resistance.
Atmospheric pressure also decreases with elevation, changing air density and affecting the blower’s required inlet airflow.
How to Calculate Blower CFM for Pneumatic Conveying
One of the primary goals of a pneumatic conveying calculation is estimating blower airflow.
The blower must supply enough air to keep material suspended while it travels through the pipeline. If conveying velocity falls below the material’s pickup or suspension velocity, product can settle inside the pipe and eventually plug the line.
Different bulk materials have different minimum pickup and suspension velocities. Plastic pellets, flour, cement, and sawdust all require different conveying air velocities to remain suspended throughout the pipeline.
A blower CFM calculation typically considers:
- Material feed rate
- Material bulk density
- Required conveying velocity
- Pipe diameter
- Air density
At its most basic, blower airflow can be estimated from the pipe’s cross-sectional area and the target conveying velocity:
CFM = Pipe Area × Conveying Velocity
Where:
- CFM = Airflow (ft³/min)
- Pipe Area = Cross-sectional area of the conveying pipe (ft²)
- Conveying Velocity = Air velocity (ft/min)
For a round conveying pipe:
Pipe Area = πD² ÷ 4
Where D is the pipe’s inside diameter.
This calculation estimates the airflow required to achieve the desired conveying velocity. A pneumatic conveying calculator then combines that airflow estimate with conveying distance, fittings, vertical lift, material properties, elevation, and air density to estimate the blower pressure required for the system.
Why Air Velocity and Pressure Must Be Balanced
Conveying velocity and system pressure are closely related.
Increasing conveying velocity generally improves material suspension, particularly in vertical conveying, but it also increases pressure drop throughout the system. Successful pneumatic conveying design balances these competing factors rather than maximizing either one.
Resistance is created as air moves through:
- Straight pipe
- Vertical sections
- Elbows
- Bends
- Transitions
- Flexible hose connections
As conveying distance and fittings increase, the blower must produce more pressure to maintain the required conveying velocity.
Excessive air velocity can also increase pipe wear, product degradation, and blower horsepower requirements.
Pneumatic Conveying Calculation Example
Consider a pneumatic conveying system transferring plastic pellets under the following conditions:
- Material rate: 5,000 lb/hr
- Pipe diameter: 10 in.
- Vertical lift: 200 ft
- Horizontal run: 1,000 ft
- Eleven elbows
- Elevation: 250 ft above sea level
The calculator first determines the effective conveying distance by accounting for the added resistance created by elbows and vertical sections.
Next, it estimates the minimum conveying velocity required to keep the pellets suspended. Using that velocity and the pipe diameter, the calculator estimates the required blower airflow (ICFM).
The estimated airflow is then combined with the system’s conveying distance, elbows, vertical lift, elevation, and other operating conditions to estimate the blower pressure requirement.
This type of pneumatic conveying calculation example allows engineers to compare different system layouts before moving into detailed design.
