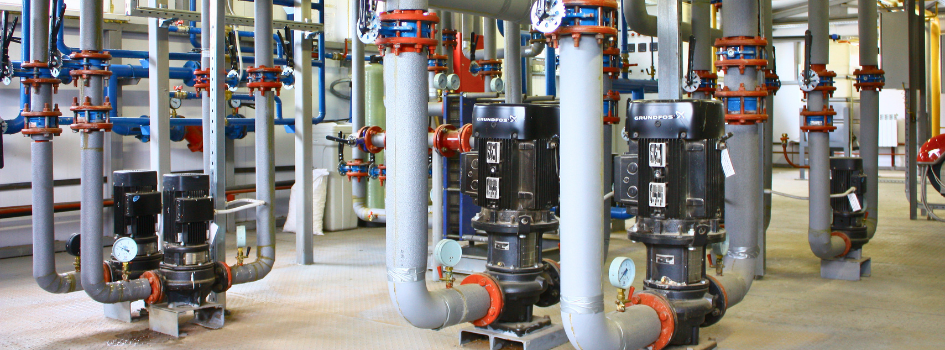

Friction Loss Calculator: How to Calculate Pressure Loss in Piping Systems
If you’re searching for a friction loss calculator, you probably need to estimate how much pressure is lost as fluid flows through a piping system. Pressure loss occurs as fluid encounters resistance inside pipes, valves, elbows, tees, and other components. A friction loss calculator estimates that pressure loss using information such as pipe size, flow rate, fluid properties, pipe length, and fittings.
What Does a Pipe Friction Loss Calculator Calculate?
Every piping system is different, so most friction loss calculators ask for several operating conditions before estimating pressure loss.
Typical inputs:
- Nominal pipe size
- Pipe schedule
- Pipe material
- Flow rate
- Fluid viscosity
- Specific gravity
- Fluid temperature
- Total pipe length
- Number of elbows
- Valves
- Tees
- Reducers and increasers
- Other fittings or resistance values
Use an Online Friction Loss Calculator
Ready to estimate pressure loss? Use this online friction loss calculator to calculate friction loss based on pipe size, flow rate, fluid properties, pipe length, and fittings.
The calculator is intended for preliminary estimates. The sections below explain what each input means and how to interpret the results.

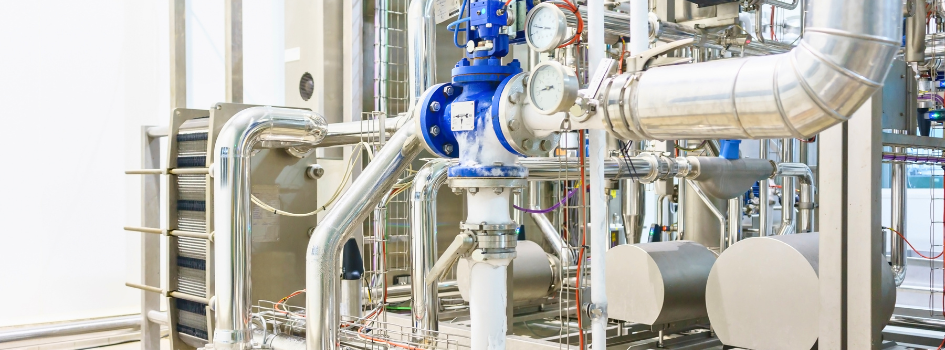

Why Does the Calculator Ask for So Many Inputs?
A friction loss calculator asks for much more than pipe size and flow rate because pressure loss depends on the entire system.
Consider two systems using the same 3-inch Schedule 40 pipe carrying 100 gallons per minute. One consists of a straight 100-foot pipe run. The other includes multiple elbows, several valves, a reducer, and additional piping. Even though the pipe size and flow rate are identical, the second system will produce considerably more friction loss because the fluid encounters more resistance before reaching its destination.
Every input helps produce a more realistic estimate of pressure loss.
How to Calculate Pressure Loss in a Pipe
Every friction loss calculation begins with accurate system information.
Engineers first identify the pipe dimensions, material, flow rate, and fluid properties. They then account for the additional resistance created by valves, fittings, entrances, exits, and other piping components before estimating the total pressure loss through the system.
Most online calculators perform these calculations automatically to estimate friction head loss (pressure loss) using established engineering methods such as the Darcy-Weisbach or Hazen-Williams equations. For most applications, accurate system inputs have a much greater influence on the result than the specific equation used.
The Biggest Factors Affecting Friction Loss in Piping
Several variables influence friction loss, but a handful typically have the greatest impact.
Flow Rate
Increasing the flow rate is one of the fastest ways to increase friction loss. Doubling the flow does not simply double the pressure loss. Resistance rises much more quickly, which is why even modest increases in flow can noticeably affect system performance.
Pipe Diameter
Larger pipe diameters reduce fluid velocity, which generally lowers friction loss. Pipe schedule also affects friction loss because it changes the pipe’s internal diameter. Two pipes with the same nominal size but different schedules can produce different pressure loss values. Smaller pipes force fluid to travel faster, increasing resistance throughout the system.
Pipe Length
Longer piping runs create more resistance because the fluid remains in contact with the pipe wall for a greater distance. As piping length increases, additional pressure is required to maintain the same flow rate.
Fluid Properties
Viscosity, specific gravity, and temperature all influence how easily a fluid flows. That’s why most friction loss calculators request this information before performing a calculation.
Valves and Fittings
Every elbow, tee, valve, reducer, and entrance introduces additional resistance. In complex piping systems, these components can account for much of the total pressure loss, making it important to include them in any friction loss calculation.
Common Mistakes When Using a Friction Loss Calculator
A friction loss calculator is only as accurate as the information entered. Even a small error can produce misleading results and affect equipment selection or system performance.
Some of the most common mistakes include:
- Omitting valves or fittings from the calculation
- Using estimated rather than measured flow rates
- Selecting the wrong pipe schedule or diameter
- Assuming water properties for every fluid
- Forgetting piping changes made during maintenance or system expansions
Taking a few extra minutes to verify the piping layout and operating conditions usually produces more reliable results than relying on assumptions.
